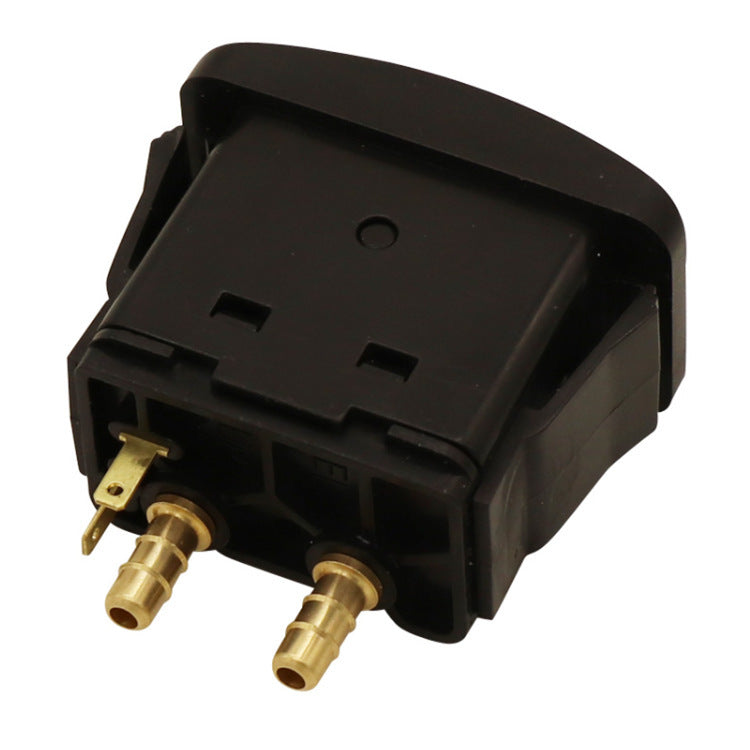

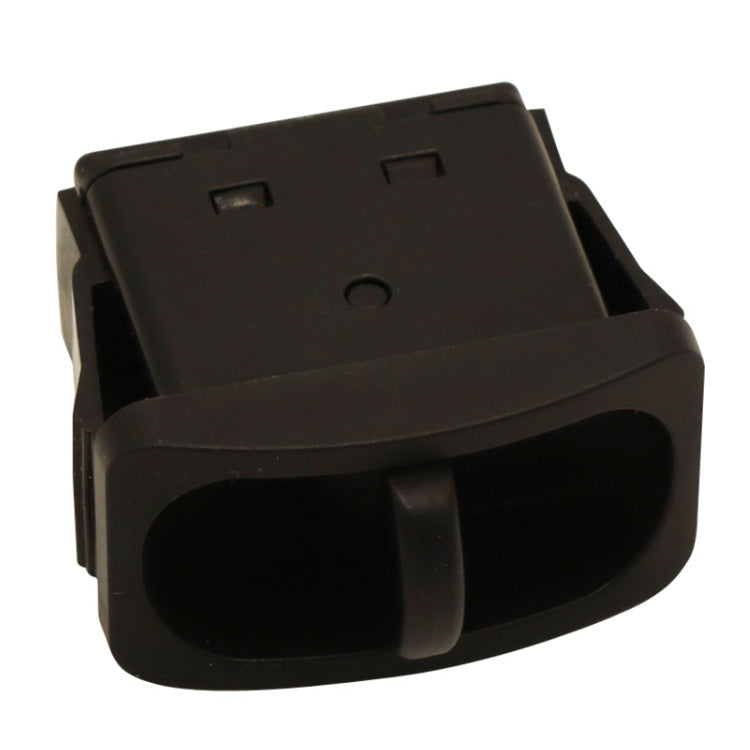

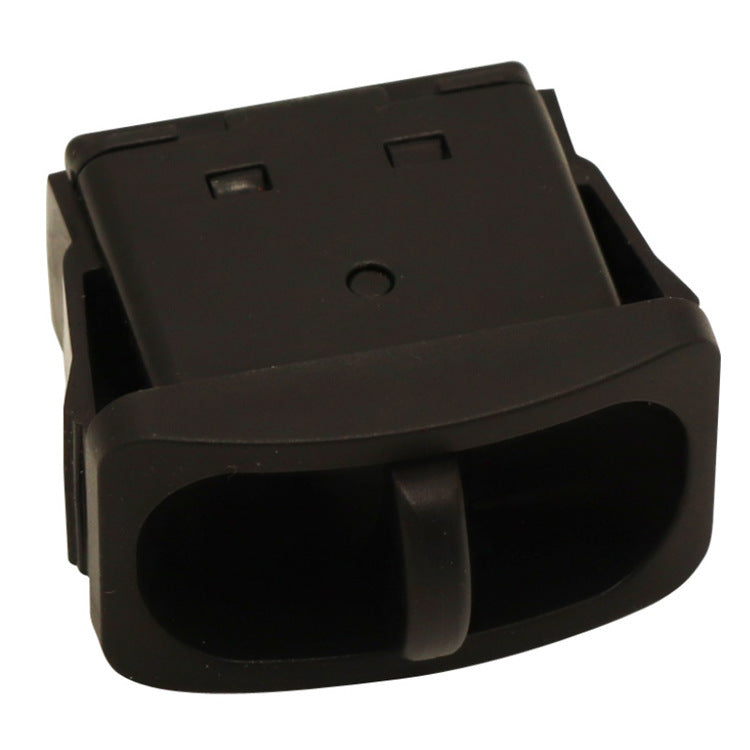

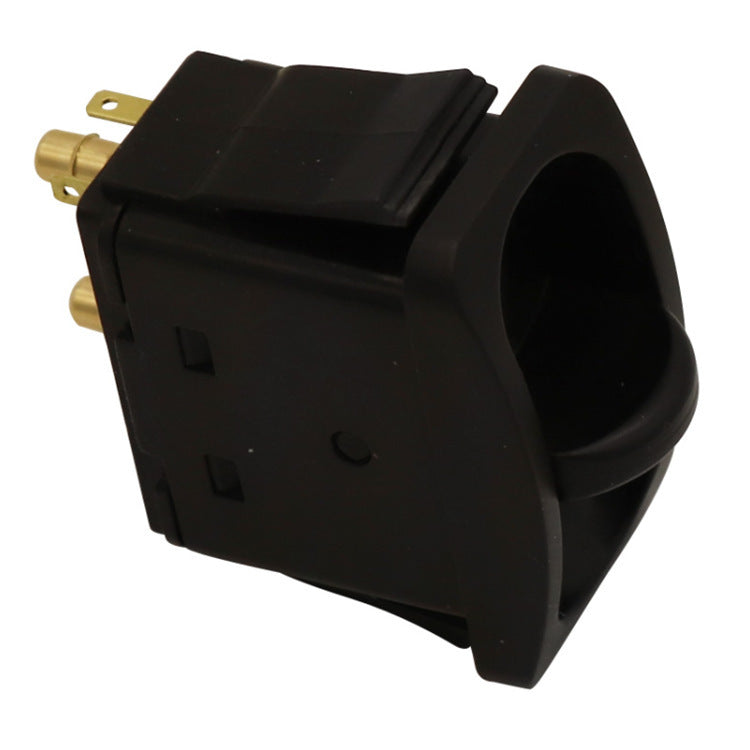

Seat Self-inflating Electric 24V 12V Air Controller

Product information:

Type: Airbag Seat
Applicable models: Airbag shock absorption seat
Appearance size: 41mm*22.5mm
Fabric Material: Plastic
Applicable models: Airbag shock absorber seat

1. Installation interface size: 41mm long * 22.5mm wide
2. Air inlet switch joint: tube outer diameter 6mm, inner diameter 4mm
3. Terminal: 2PL

Feature description：
1. Paddle seat electronic air valve switch (using electric drive air compressor to provide pneumatic control and electric control for air seat)
2. Three-position three-way, middle seal, paddle switch
3. Air pressure resistance 1.5Mpa
4. Air leakage is less than 10ml/min
5. Action durable 10,000 times

Packing list:

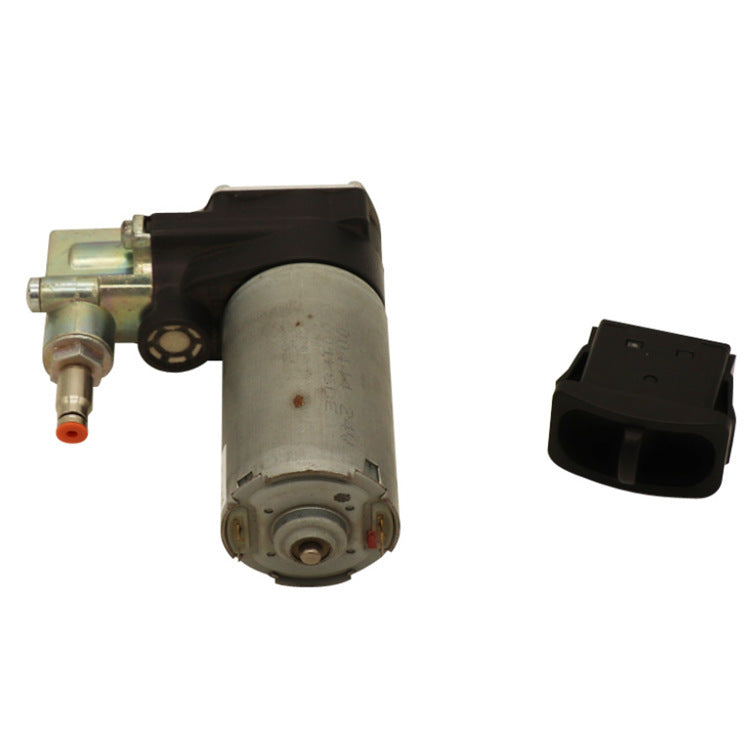

Air pump controller*1
