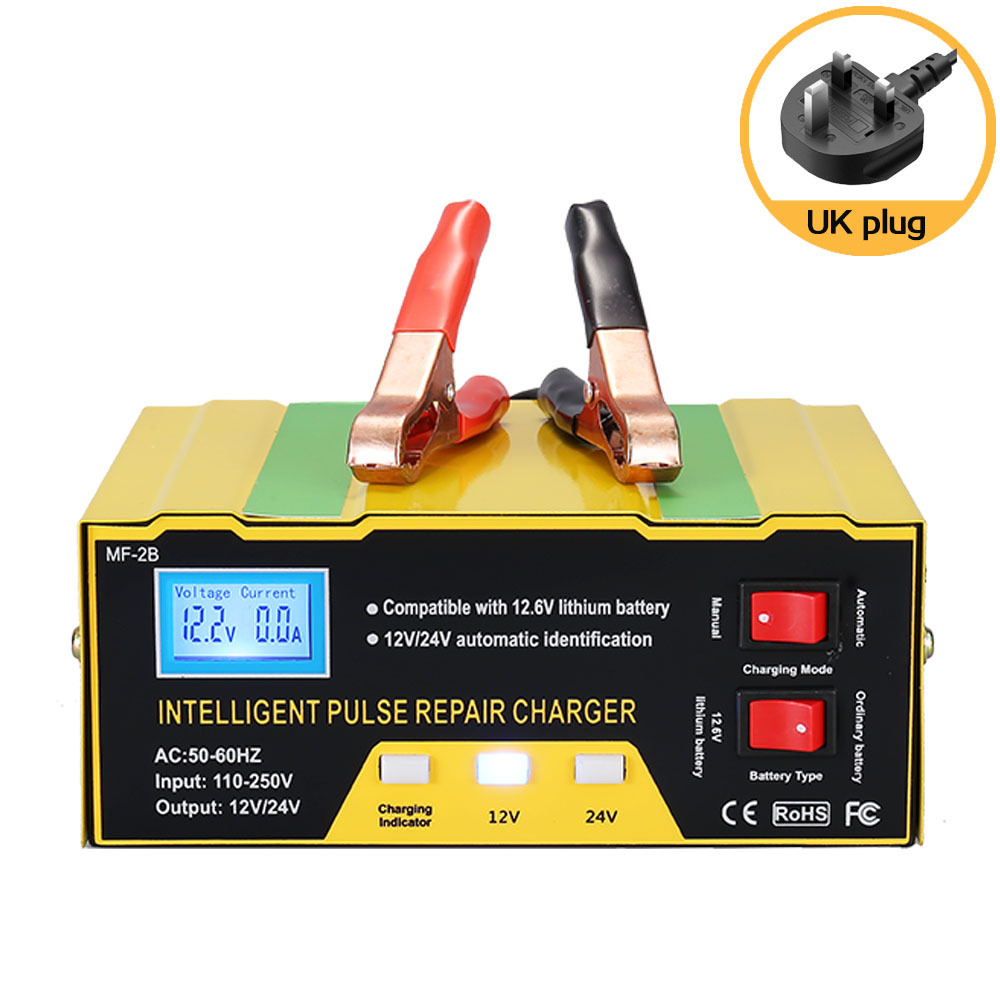

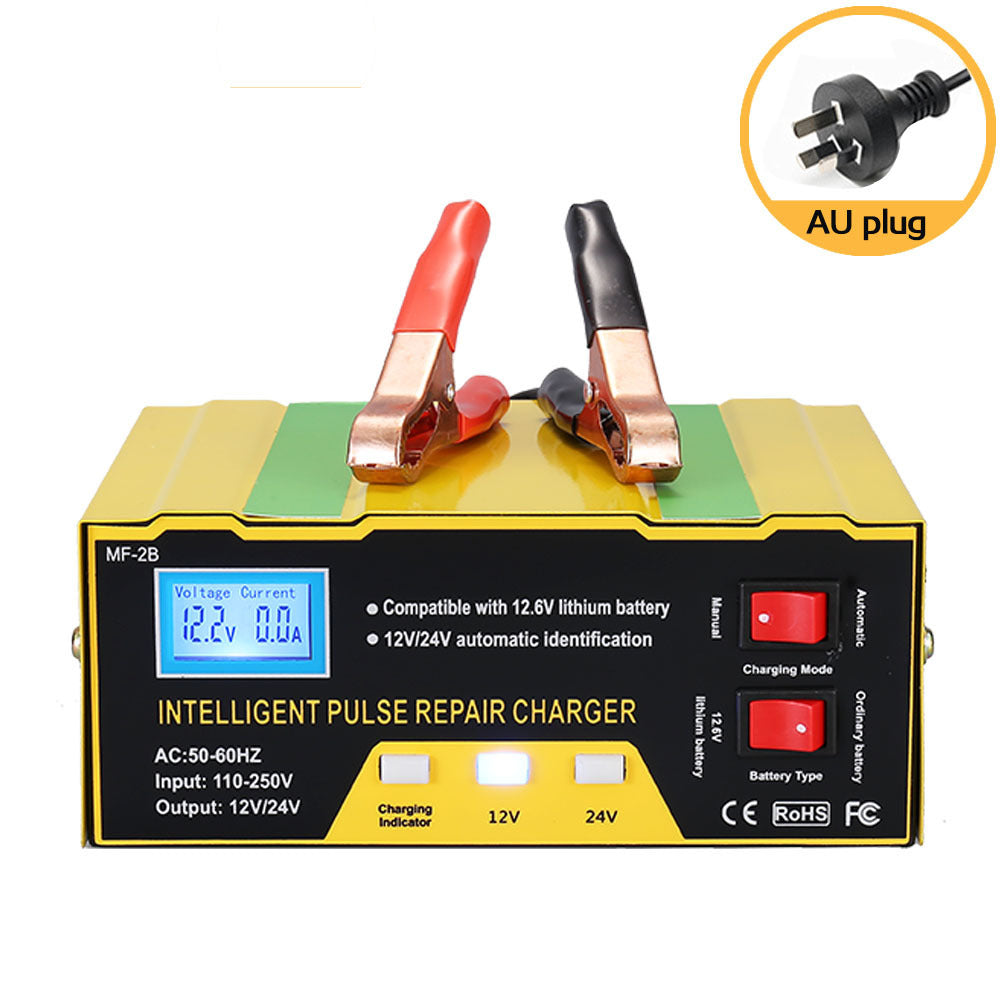

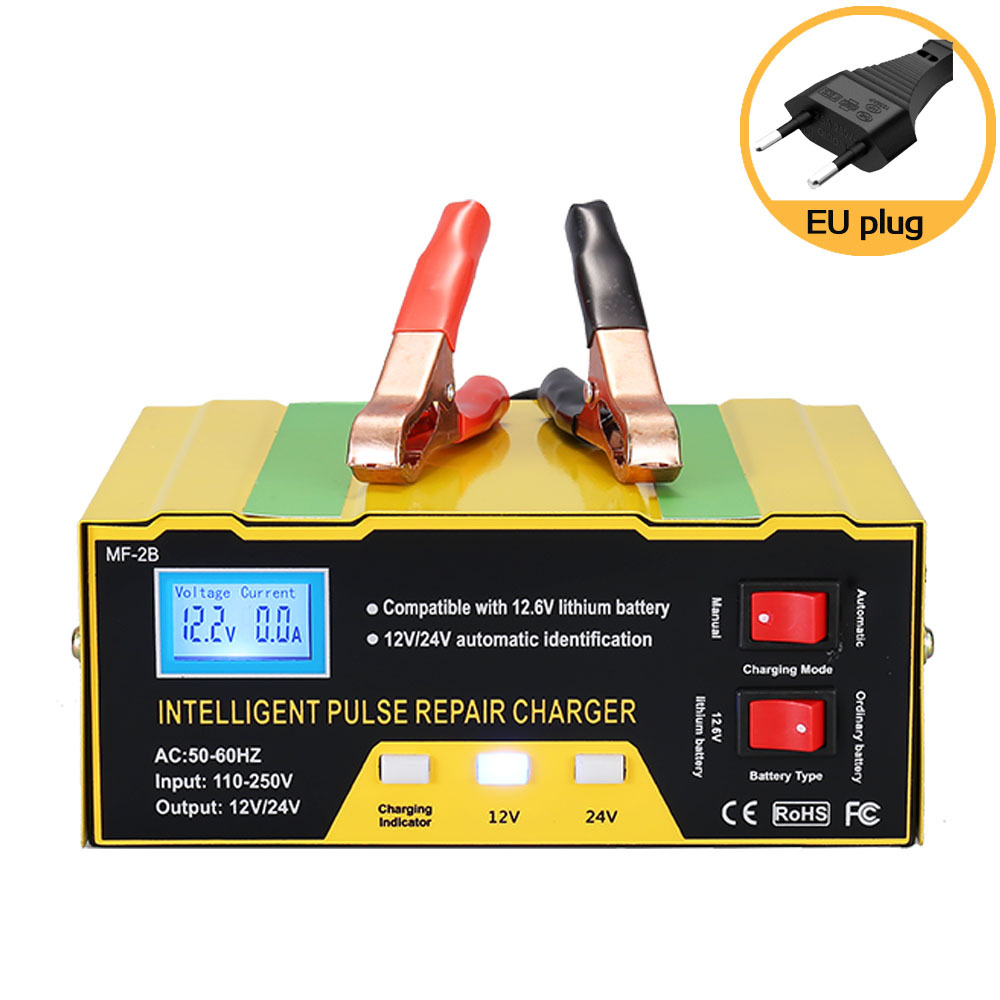

Car Battery Charger 12v24v Pure Copper Intelligent Pulse Repair
Car Battery Charger 12v24v Pure Copper Intelligent Pulse Repair
Couldn't load pickup availability

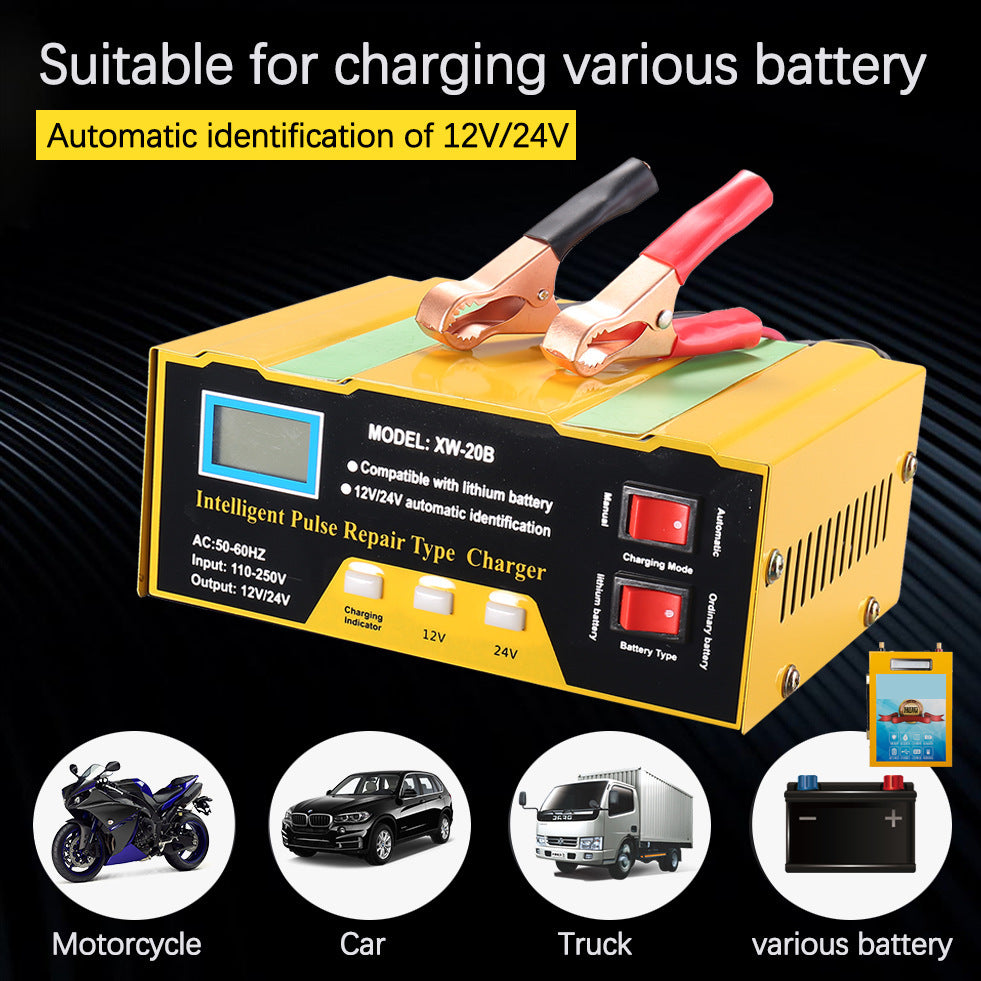

Application
It's compatible with all kinds of 12V /24V lead-acid battery, water battery, maintenance-free battery, dry battery charging. etc. (VELA BATTERY ,GEL BATTERY,OPZN BATTERY
And 12.6V lithum battery
APPLY : scooter, motorcycle, car, SUV, small truck, tractor and any vehicle batteries.
Batteries of all capacity can be recharged, there is difference in charging time ,
the larger capacity battery will takd longer time.
The charging time depends on the true capacity of the battery.
Features:
1. One-button automatic
2. Applicable for 12V or 24V battery.
3.Digital display power, voltage, current , Show charging status in stages
4. The current can be adjusted manually, Automatic & manual charging modes, more reliable and secure.
5. Compatible with 12.6V lithium battery charging
Specifications:
|
Model |
XW-20B/MF-2B |
|
|
|
Input voltage |
110V-250V |
power |
180W |
|
Output voltage |
12V24V |
Frequency |
50-60HZ |
|
Working Current |
12V10A; 24V7.5A |
Voltage Identification |
12V Peak (8-14.5V)；24V Peak (18-29V) |
|
Work Temperature |
-30℃ to +50℃ |

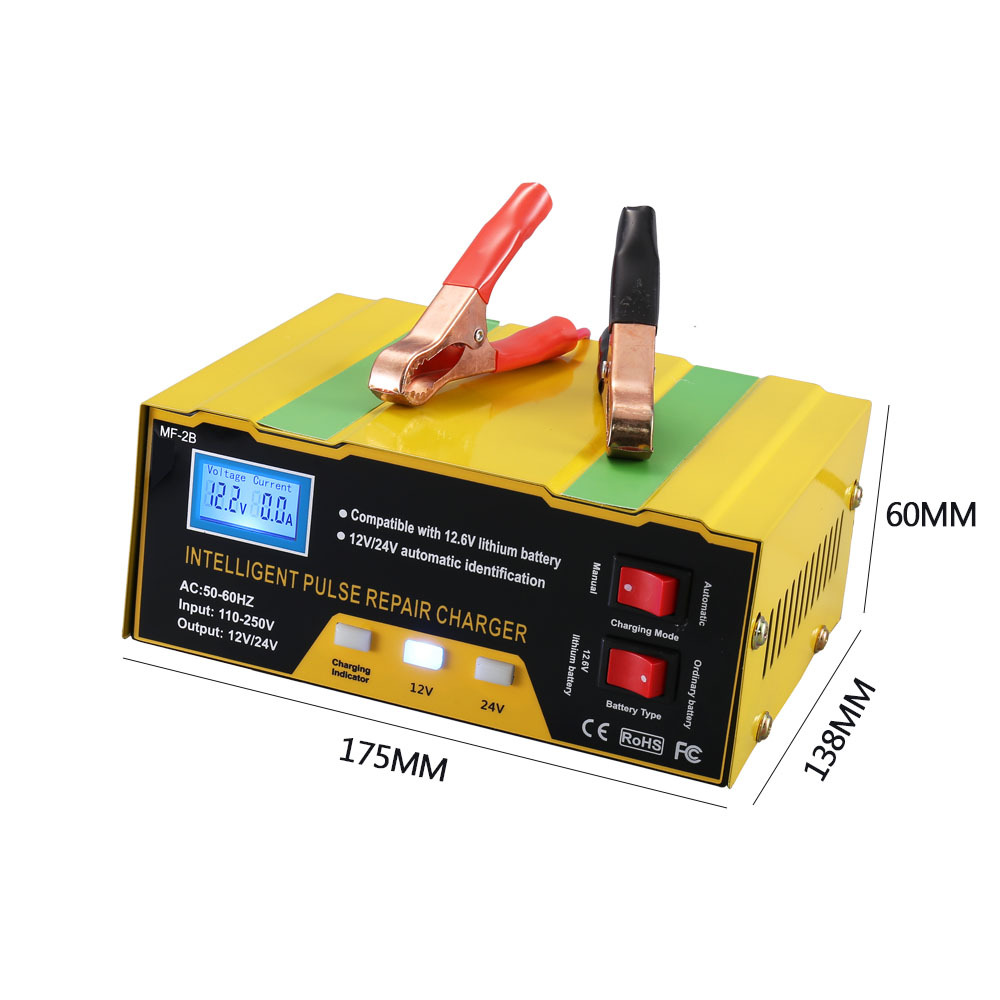

Product size |
190*140*70（mm） |
|
Net weight |
0.7kg |
Protection function |
Multiple protection |
|
Battery type |
1. 12V24V battery: Lead-Acid Battery; Maintenance-free battery; Dry battery, Water battery; Gel battery; Solar battery, ect. 2. 12.6V Lithum battery |
||
Packaging information
|
Product size |
190*140*70（mm） |
||
|
Net weight |
0.7kg |
Gross weight |
0.8kg |
|
Packing quantity |
20Pcs |
Carton siza |
42x36.5x38CM |
|
Packing Weight |
18KG |
Plug |
Optional |
|
input line |
120CM |
output line |
60CM |

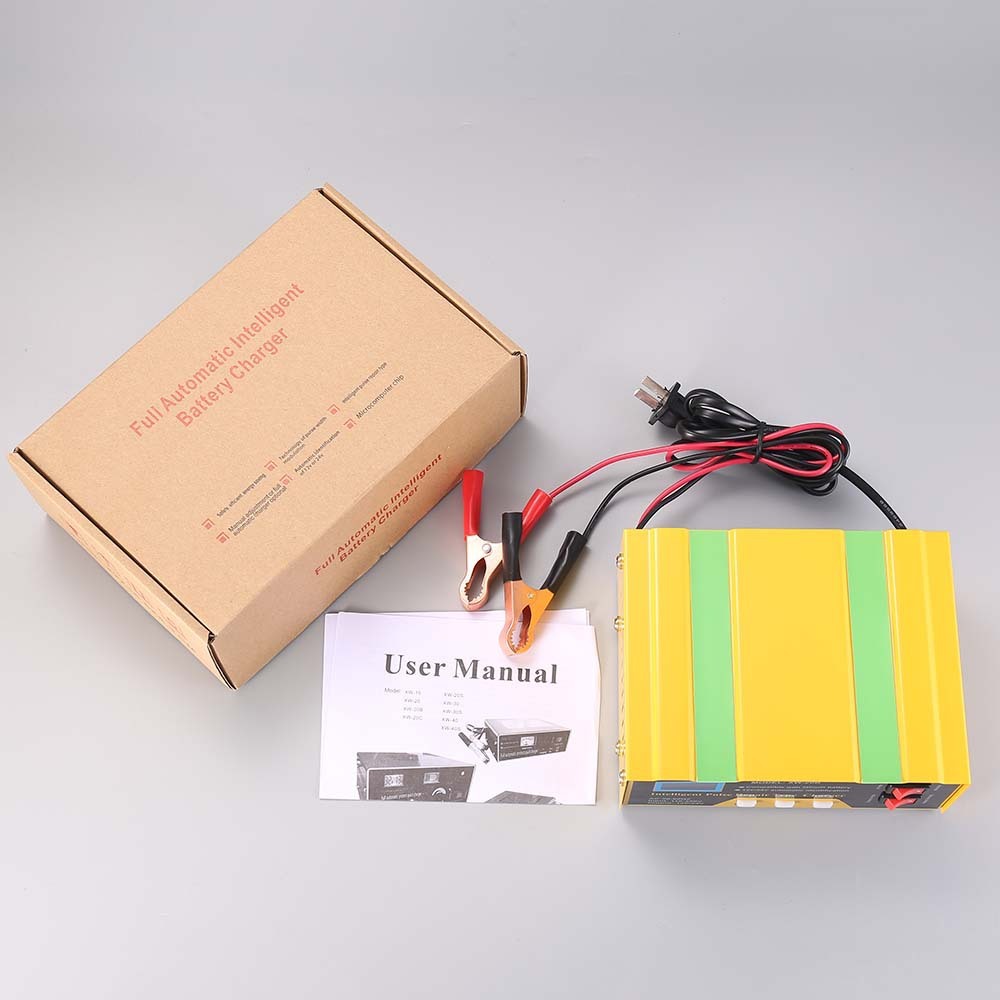

Package List:
1 * Charger
1 * User Manual(English)
Charging time reference
|
Battery（AH） |
Charging time（H） |
Battery（AH） |
Charging time（H） |
|
3AH |
0.5 |
6AH |
1-2 |
|
9AH |
1-3 |
12AH |
3-5 |
|
20AH |
4-5 |
32AH |
5-7 |
|
36AH |
7-8 |
45AH |
7-10 |
|
55AH |
8-10 |
60AH |
9-14 |
|
80AH |
10-15 |
105AH |
15-22 |
|
120AH |
19-25 |
150AH |
20-28 |
Charging mode ：
Four stage charging , protect the battery , non-overcharging
1.Adaptive electricity charging
2. Charging at constant voltage
3. Full charge soon&conduct floating charge
4. Microcurrent supply/full charge
SIX Protections ,Ensure safe charging
Short Circuit protecton
Polarity error protecton
Overheating protection
Over current protection
low-voltage protection
Over voltage protection
Note:
1. Please do not block cooling fan or use the charger while cooling fan is stopped.
2. Please prevent the charger from rain or water to avoid damage.
